The all new Transition Patrol NX; now with Speed Balanced Geometry. A 160mm travel frame combined with 27.5 wheels, Sram NX drivetrain and RockShox suspension.
The all new Transition Patrol NX; now with Speed Balanced Geometry. A 160mm travel frame combined with 27.5 wheels, Sram NX drivetrain and RockShox suspension.
Transition

2018 Transition Patrol Alloy NX - Storm Grey

£2,999.95
Click & Collect for Free
Earn
 in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on the Undetermined
Earn Rewards
You will earn of rewards points to spend on your next purchase from us, anything online and instore when you purchase this item.

28 day returns

Refunds and Returns Policy

We guarantee to replace or refund faulty products covered by manufacturers warranty subject to inspection of goods and manufacturers approval.

We will replace or refund goods which don't fit or are unsuitable provided the goods are returned unused and in the original packaging within 28 days of delivery.

The quickest option is to drop the stock back to us in store along with a copy receipt but alternatively we have made the online returns process as simple as possible for you.

1)            Give us a call on 01952 763274 or email us to say you're sending something back

2)            Pop a note in, together with a copy receipt, with the item to say whether you'd like a refund or an exchange for a different product

3)            Post it back to us at Plush Hill Cycles, Unit 9A, Birchfield Way, Lawley, Telford, TF3 5BZ and make sure you get a proof of postage

4)            The item is your responsibility until it reaches us. For your own protection, we recommend that you send the parcel using a delivery service that insures you for the value of the goods.

5)            The cost of returning the item to us is your responsibility.

6)            The parcel can take up to 7 working days to be processed once received.

Promotional items: When returning items that were purchased online as part of a ‘Buy One, Get One Free’ offer, 'Buy One, Get One Half Price' offer, '3 for 2' offer, or a 'Buy , Get a Free' offer, all of the items involved in the offer must be returned.

When returning goods, if no fault is found we do not refund delivery charges and may charge for collecting the goods if they are not brought into our store.

All Custom Builds and 'Made to Order' items require a 20% deposit on order, with the balance payable at pick-up/delivery and are, unless faulty, non-refundable.

Deposits on Special Order Items are non-refundable.

Items ordered specially into store will be held in-store for 14 days from the time that customers are notified that they are available for pick-up (unless otherwise agreed). If goods are not collected in that time they will added to shop stock and made available for general sale, deposits are non-refundable.

2018 Transition Patrol Alloy NX - Storm Grey Information

Season : 2018

Brand : Transition

Code : 01.18.10.336

2018 Transition Patrol
27.5" / 170mm Front Travel / 160mm Rear Travel / Alloy Frame

Colour: Storm Grey

  • New GiddyUp Kinematics
  • Speed Balanced Geometry
  • Boost Dropout Spacing
  • Trunnion Metric Shock Sizing
  • Enduro Max Sealed Bearings
  • Threaded Bottom Bracket

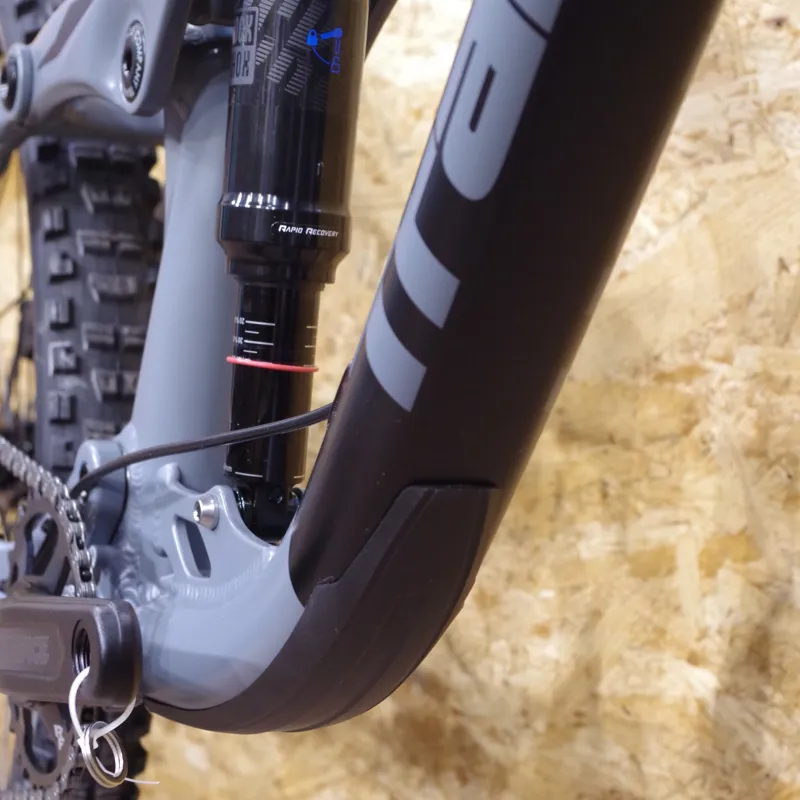

  • Molded Rubber Downtube & Chainstay Protection

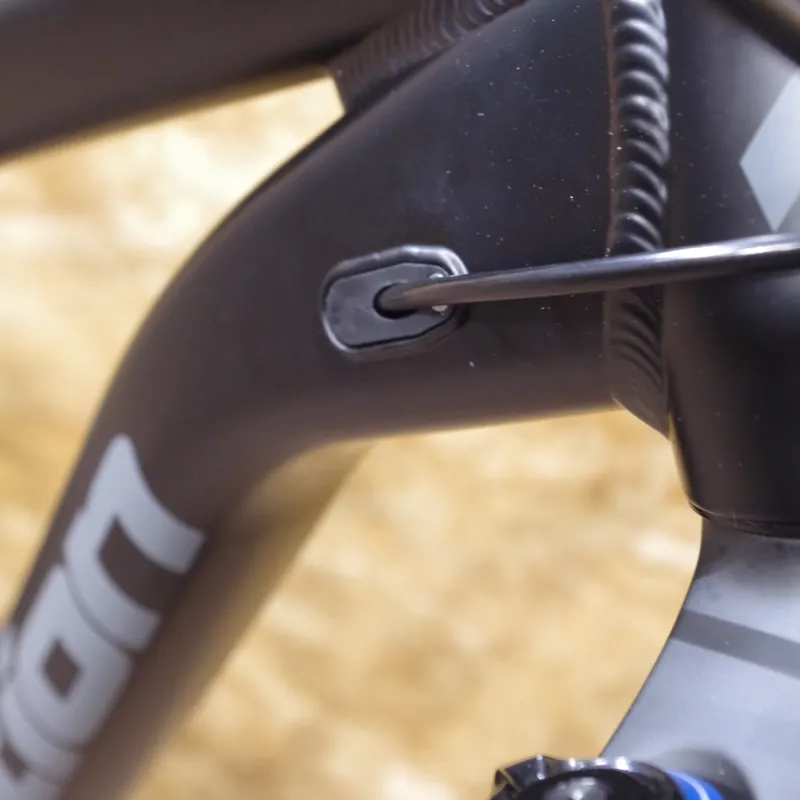

  • New Rattle Free Internal Cable Port Covers
  • External Rear Brake Routing
  • 180mm Post Mount Brake
  • Increased Seatpost Insertion
  • Collet Main Pivot
  • Water Bottle Storage Inside Front Triangle
  • New X-Small Size
  • Tire Clearance up to 27.5" x 2.8"
Technical Information
Frame: 2018 Transition Patrol Alloy - Storm Grey
Shock: RockShox Deluxe RT

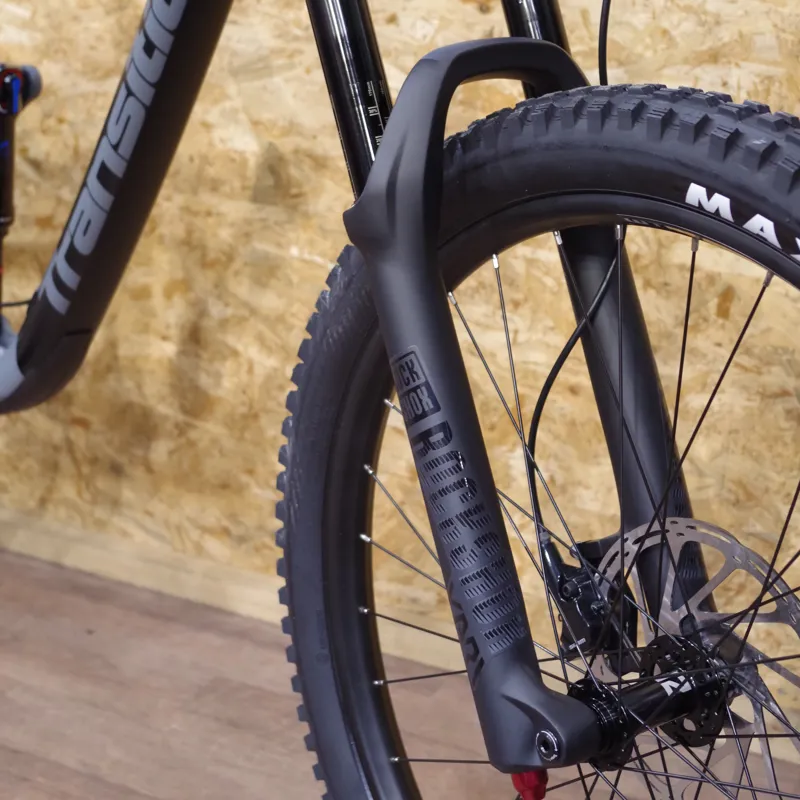

Fork: RockShox Yari RC Solo Air
Headset: FSA No57SC

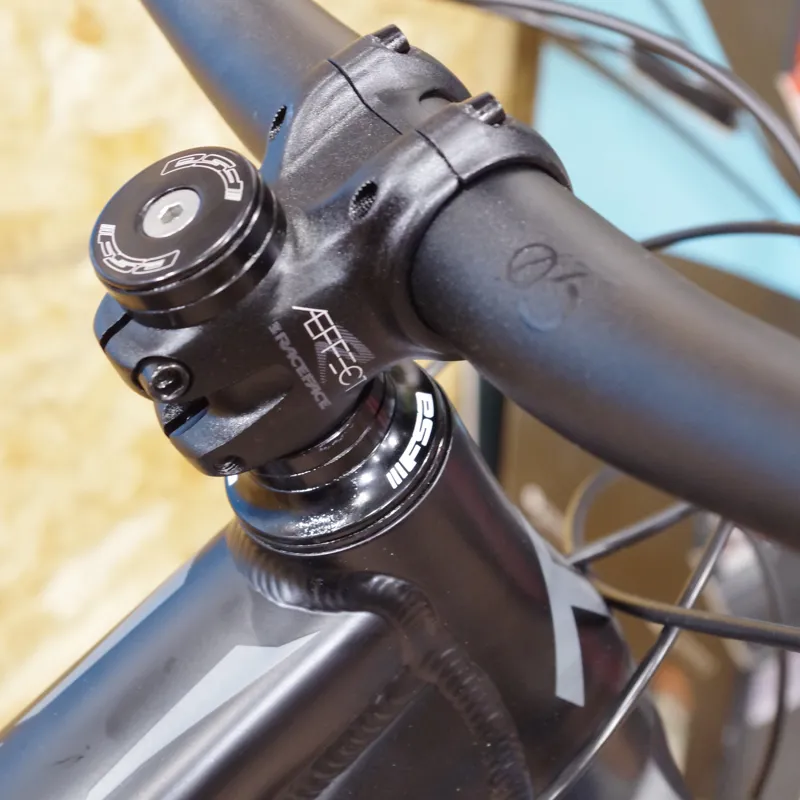

Stem: Raceface Aeffect R (40mm)
Bar: RaceFace Chester 35 (780mm x 20mm)
Grips: Velo Single Clamp
Saddle: WTB Volt Comp
Seatpost: Raceface Aeffect
Brakes: Sram Level T
Rotors: Sram Centreline (200/180mm)
Shifter: Sram Nx
Rear Derailleur: Sram Nx

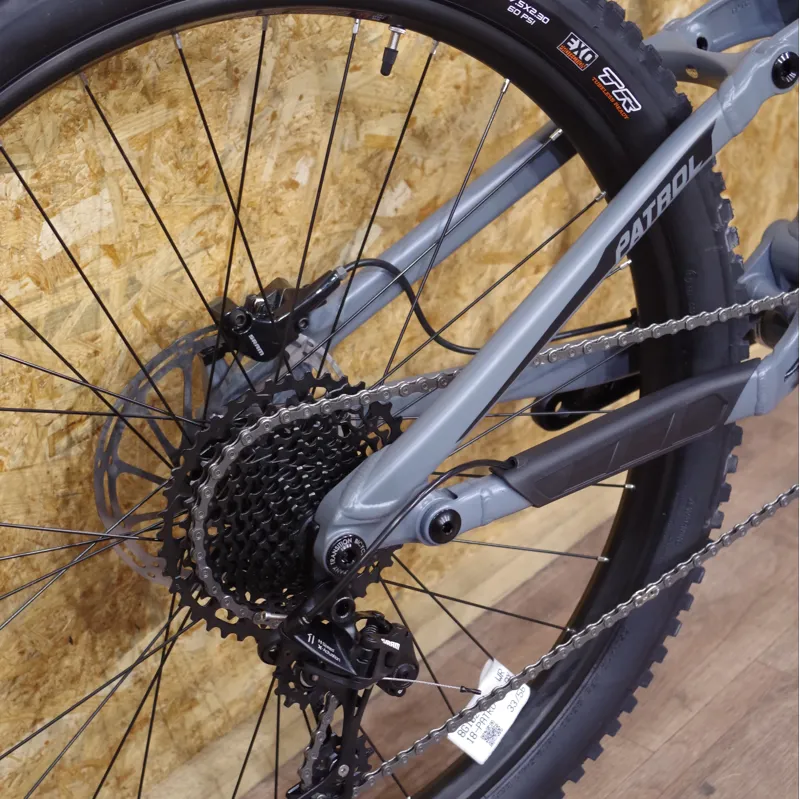

Cassette: Sram PG 1130 (11-42t)
Chain: Sram PG 1110

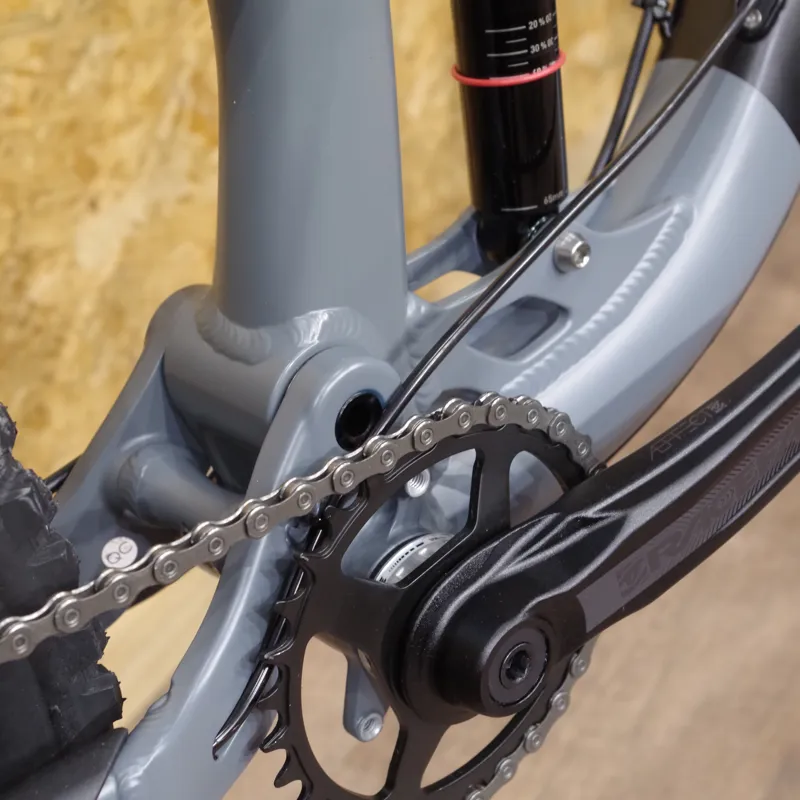

Crank Raceface Aeffect (30t, 170mm)
Chainguide: N/A
Rims: WTB STPi29
Hubs: Joytech D711SB & D462SB
Tyres Maxxis Minion DHF & DHR II 2.3 EXO Dual




Sizing Information

Transition Trail bike sizing

Approx rider height range:

5'2"-5'6" Small

5'6"-5'10" Medium

5'10"-6'2" Large

6'2"-6'6" Extra Large

Some sizing notes from Transition:

The days of 120mm stems and 680mm handlebars with bar ends are nearly gone and we feel that an approach to sizing born in that era should go away as well. With progressive trail design and all of the recent changes in bike technology, selecting your frame size is not as cut and dry as it once was. With the huge variety of trail styles, riding styles and bike setup preferences, we would urge you to look beyond your height and inseam to find the right bike size. We want you to have as much fun as possible riding your bike. And in the end we want you to remember, there is no right or wrong size for you (within reason of course).

Take a look at the style of trails you will be riding, and how you would approach them... are they fast and open or tight and technical? Steep or mellow? Do you like to catch air or keep the wheels on the ground? Do you pick the gnarly straight line, or move your bike around on the trail? Did you grow up racing BMX bikes, start off with mountain biking, or get into it from road biking? Want your bike to feel super stable or super agile? All of these factors come into play, and each one is just as important as the others. For example, you can choose to ride a size Large frame and use a 35mm stem and achieve a nearly identical reach as a Medium size frame with a 60mm stem. Each setup can be as capable as the other, while offering a very different feeling ride. Even beyond stem length, depending on how you have answered those questions, you might want to go up or down in size to get the right fit and feel for you and your trails.

In order to reflect those choices, we have updated our sizing chart with a lot more overlap across the size range. We have tried to illustrate the bike sizes we felt would apply to each rider size; but be sure to look at the geometry and make sure the size you are choosing makes sense for your preferences. Everyone is different, plain and simple. The lines have become blurred and there is no strict rule of thumb anymore. When choosing your perfect size, ask yourself these questions, call or email us if you need a second opinion and most importantly... make sure you pick the setup that you feel will be the most fun!
Professional Opinion

TRANSITION RIDE IMPRESSIONS

In the search for a better handling bike, we started by asking some simple questions. Why are mountain bikes becoming longer and slacker? The obvious answer is stability. Why is this good? It makes the rider feel safer and creates a more stable chassis at higher speeds or steeper terrain. Longer and slacker comes at a cost however, and that cost is realized at slower speeds or flatter terrain where the front wheel is too far ahead of the rider. This inhibits the rider's ability to properly weight the front wheel. What if it were possible to have a mountain bike that did all of this well?



INTRODUCING SBG GEOMETRY

FRAME SIZING
Our SBG system utilizes frame reach measurements that are longer than our current models. The SBG system is designed to be used with a 40mm stem, which equates to a modest total increase in reach when compared to our current models which use 50mm stems. Our SBG system additionally includes steeper seat tube angles which aid in climbing traction and reduce seated sag when climbing. These two changes bring the rider more forward in the chassis into a more central location between the front and rear tire contact patches, which greatly increases traction.

HEAD TUBE ANGLE
SBG integrates slacker headtube angles which allow the fork to absorb impacts better on all angles, and positions the front wheel further forward in relation to the handlebars. As you approach obstacles in the trail a steeper head tube angle has a more vertical suspension path. This reduces the forks ability to properly absorb impacts and generates deflection. A slacker headtube angle positions the fork at a better angle of approach to absorb impacts which reduces deflection. Additionally, slacker headtube angles reduce dive while increasing rear wheel grip under heavy braking.

FORK OFFSET
SBG is designed to be used with a fork offset that is shorter than traditionally used per wheel size. The shorter fork offset brings the front axle more rearward and under the rider which further increases front tire traction. This works in unison with the shorter stem length to provide a more direct steering input and dramatically enhances connectivity to what is happening with the front wheel. The shorter offset also brings the front wheel more under the rider which balances the effects of a slacker head angle. Our SBG system creates a longer trail figure than standard, used in a way that eliminates the negative side effects.
