Like Gravel, but faster. Ridley ASTR Rival AXS XPLR 1x12 Blk Metal Bronze Gravel Race Bike
Like Gravel, but faster. Ridley ASTR Rival AXS XPLR 1x12 Blk Metal Bronze Gravel Race Bike
Ridley

Ridley ASTR Rival AXS XPLR 1x12 Blk Metal Bronze Gravel Race Bike

£4,499.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

28 day returns

Refunds and Returns Policy

We guarantee to replace or refund faulty products covered by manufacturers warranty subject to inspection of goods and manufacturers approval.

We will replace or refund goods which don't fit or are unsuitable provided the goods are returned unused and in the original packaging within 28 days of delivery.

The quickest option is to drop the stock back to us in store along with a copy receipt but alternatively we have made the online returns process as simple as possible for you.

1)            Give us a call on 01952 763274 or email us to say you're sending something back

2)            Pop a note in, together with a copy receipt, with the item to say whether you'd like a refund or an exchange for a different product

3)            Post it back to us at Plush Hill Cycles, Unit 9A, Birchfield Way, Lawley, Telford, TF3 5BZ and make sure you get a proof of postage

4)            The item is your responsibility until it reaches us. For your own protection, we recommend that you send the parcel using a delivery service that insures you for the value of the goods.

5)            The cost of returning the item to us is your responsibility.

6)            The parcel can take up to 7 working days to be processed once received.

Promotional items: When returning items that were purchased online as part of a ‘Buy One, Get One Free’ offer, 'Buy One, Get One Half Price' offer, '3 for 2' offer, or a 'Buy , Get a Free' offer, all of the items involved in the offer must be returned.

When returning goods, if no fault is found we do not refund delivery charges and may charge for collecting the goods if they are not brought into our store.

All Custom Builds and 'Made to Order' items require a 20% deposit on order, with the balance payable at pick-up/delivery and are, unless faulty, non-refundable.

Deposits on Special Order Items are non-refundable.

Items ordered specially into store will be held in-store for 14 days from the time that customers are notified that they are available for pick-up (unless otherwise agreed). If goods are not collected in that time they will added to shop stock and made available for general sale, deposits are non-refundable.

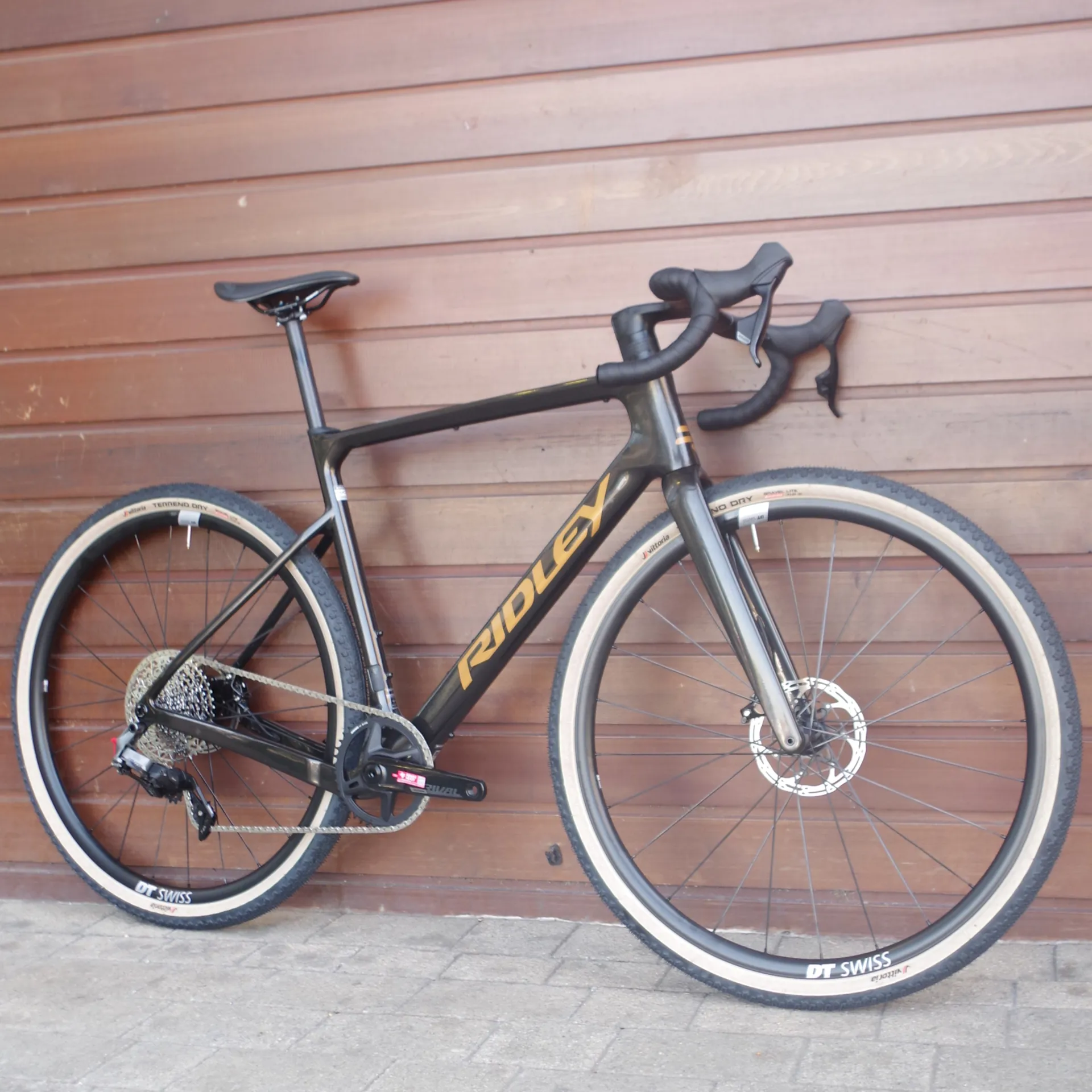

Ridley ASTR Rival AXS XPLR 1x12 Blk Metal Bronze Gravel Race Bike

Season:2025

Brand:Ridley

Code:SBIASTRID058

The ASTR brings all the features of the ASTR RS to an affordable price point: from aerodynamic improvements to modern gravel geometry.

The ASTR is ready for every fast ride or gravel race on every type of terrain. Just like the ASTR RS, the ASTR has a tire clearance of 47 - 52 mm (52 millimeters with a 1x setup and 47 millimeters with a 2x setup) for increased grip and comfort.

Modern performance geometry also requires more stability due to increasingly rough terrain combined with higher speeds. A 71.5-degree headtube angle ensures you have faster steering. The ASTR features a steeper seat tube (74 degrees), making climbing performance and power transfer better than with a less steep seat tube.

The product developers kept the chainstays as short as possible to accommodate tyres up to 52 millimetres without losing the feeling of responsiveness when accelerating. In addition, the bottom bracket is a bit lower than on bikes that bet on comfort. This ensures you have more stability at high speed. Finally, the head height is lower, so you sit more aerodynamically on the bike. In summary, this boils down to a modern competitive geometry, tailored for the ambitious gravel racer.

With the addition of the ASTR to the lineup, Ridley underscores its ambition to offer everyone the chance to own an ASTR: from ambitious amateurs to the most dedicated pros.

Technical Information
Frame: ASTR, HM carbon, BB86, TA12x142
Material: Carbon
Frame Level: Essential Series
Max Tire Clearance: 700c 52mm (1x drivetrain) / 47mm (2x drivetrain)
Paint Finish: Glossy
Fork: ASTR, TA 12x100, Integrated forkcrown diffuser; 50mm rake, D-Shape steerer
Groupset: Sram Rival AXS XPLR 1x12sp

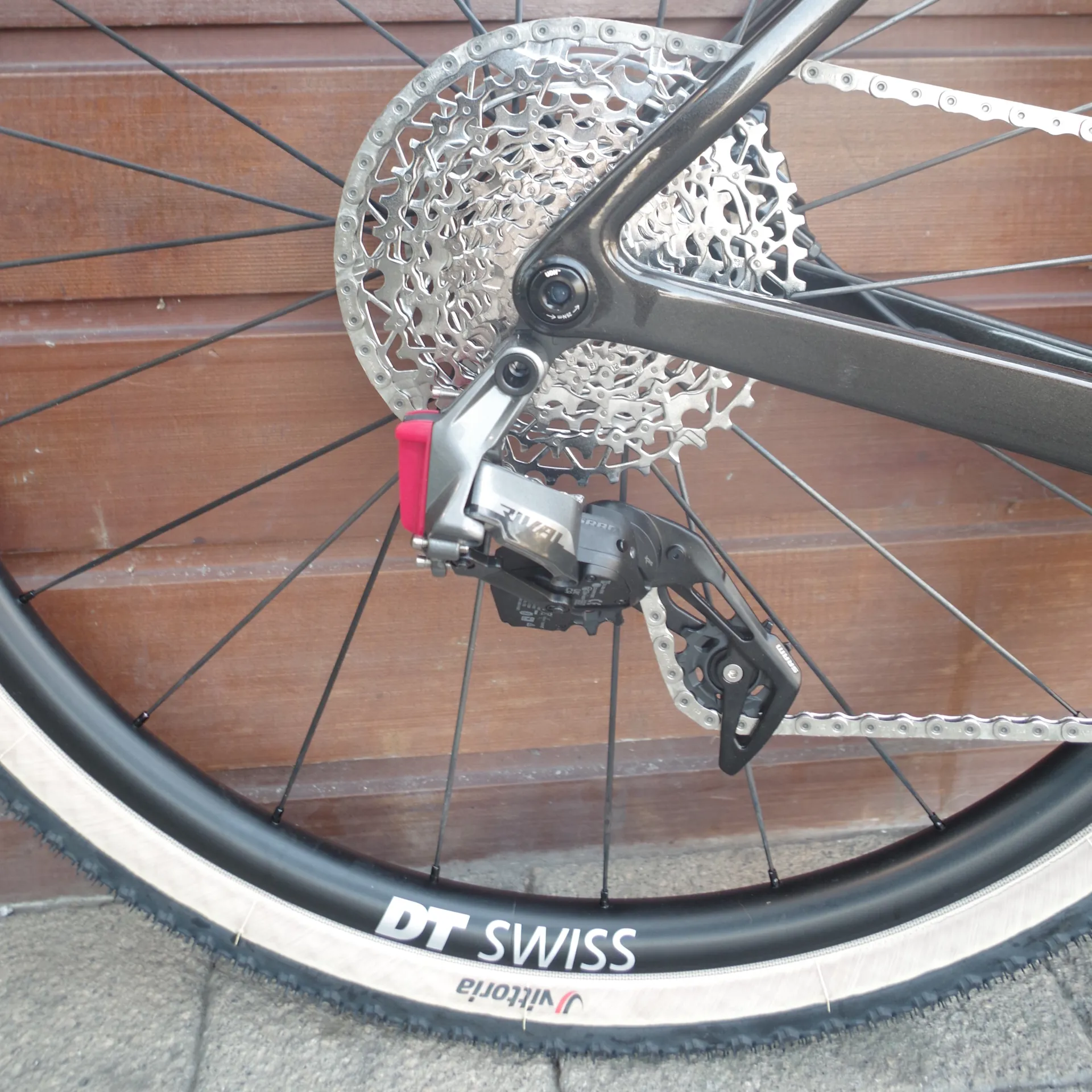

Rear Derailleur: Sram Rival eTap AXS XPLR , 12sp

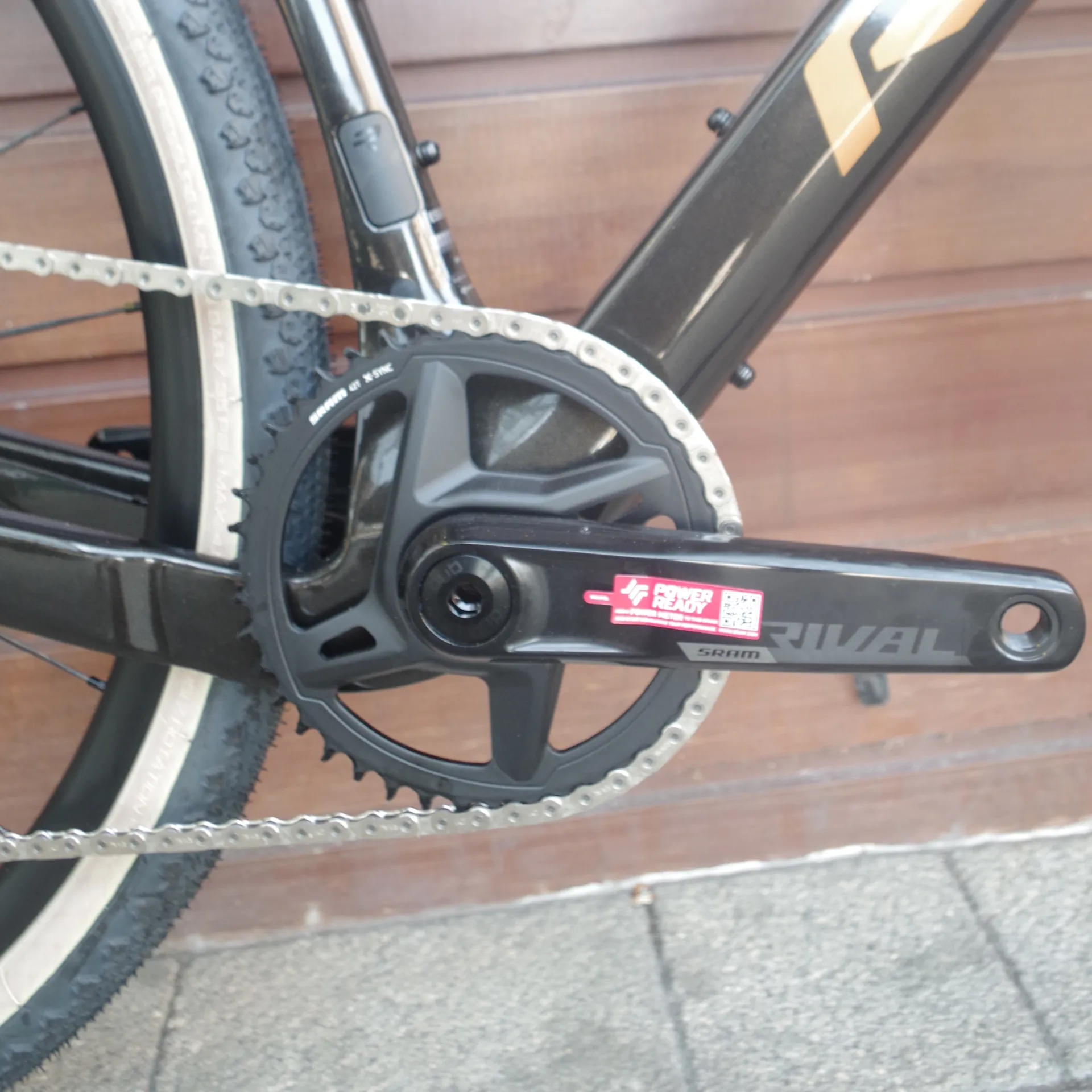

Crank: SRAM RIVAL1 , 172 , 42
Cassette: SRAM XPLR XG-1251 , 12s , 10-44
Brake Type: Flat Mount
Front Wheel: DT Swiss G1800 Spline , TA 12x100mm , Tubeless Ready, 25mm Deep , 24mmm Internal Width
Rear Wheel: DT Swiss G1800 Spline , TA 12x142mm , Tubeless Ready , 25mm Deep , 24mm Internal Width
Outer Tyre: Vittoria Terreno Dry TLR , 700x47c , Folding-TLR , Tan Wall
Handlebar: Forza Cirrus Pro Integrated Flared , 90mm - 380mm (cc shifters) - 445mm (cc drops) , 16° flared , Drop 120mm , Reach 70mm
Seatpost: 4ZA Cirrus , 27.2 , 400mm , Zero offset , Black
Saddle: Selle Italia Novus Boost Superflow , Manganese Rails , Black
Range:Gravel
