The 2027 Orbea Orca M20i LTD PWR in Escape Green/Carbon View Matt combines an OMX carbon frame with Shimano Ultegra Di2, a left-side 4iiii power meter, OQUO RP45LTD carbon wheels and Vittoria Corsa Pro 29mm tyres.
The 2027 Orbea Orca M20i LTD PWR in Escape Green/Carbon View Matt combines an OMX carbon frame with Shimano Ultegra Di2, a left-side 4iiii power meter, OQUO RP45LTD carbon wheels and Vittoria Corsa Pro 29mm tyres.
ORBEA

2027 Orbea ORCA M20i LTD PWR Road Bike - Escape Green/Carbon View Matt

£6,199.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

28 day returns

Refunds and Returns Policy

We guarantee to replace or refund faulty products covered by manufacturers warranty subject to inspection of goods and manufacturers approval.

We will replace or refund goods which don't fit or are unsuitable provided the goods are returned unused and in the original packaging within 28 days of delivery.

The quickest option is to drop the stock back to us in store along with a copy receipt but alternatively we have made the online returns process as simple as possible for you.

1)            Give us a call on 01952 763274 or email us to say you're sending something back

2)            Pop a note in, together with a copy receipt, with the item to say whether you'd like a refund or an exchange for a different product

3)            Post it back to us at Plush Hill Cycles, Unit 9A, Birchfield Way, Lawley, Telford, TF3 5BZ and make sure you get a proof of postage

4)            The item is your responsibility until it reaches us. For your own protection, we recommend that you send the parcel using a delivery service that insures you for the value of the goods.

5)            The cost of returning the item to us is your responsibility.

6)            The parcel can take up to 7 working days to be processed once received.

Promotional items: When returning items that were purchased online as part of a ‘Buy One, Get One Free’ offer, 'Buy One, Get One Half Price' offer, '3 for 2' offer, or a 'Buy , Get a Free' offer, all of the items involved in the offer must be returned.

When returning goods, if no fault is found we do not refund delivery charges and may charge for collecting the goods if they are not brought into our store.

All Custom Builds and 'Made to Order' items require a 20% deposit on order, with the balance payable at pick-up/delivery and are, unless faulty, non-refundable.

Deposits on Special Order Items are non-refundable.

Items ordered specially into store will be held in-store for 14 days from the time that customers are notified that they are available for pick-up (unless otherwise agreed). If goods are not collected in that time they will added to shop stock and made available for general sale, deposits are non-refundable.

2027 Orbea ORCA M20i LTD PWR Road Bike - Escape Green/Carbon View Matt

Season:2027

Brand:ORBEA

Code:U114TTCCAU

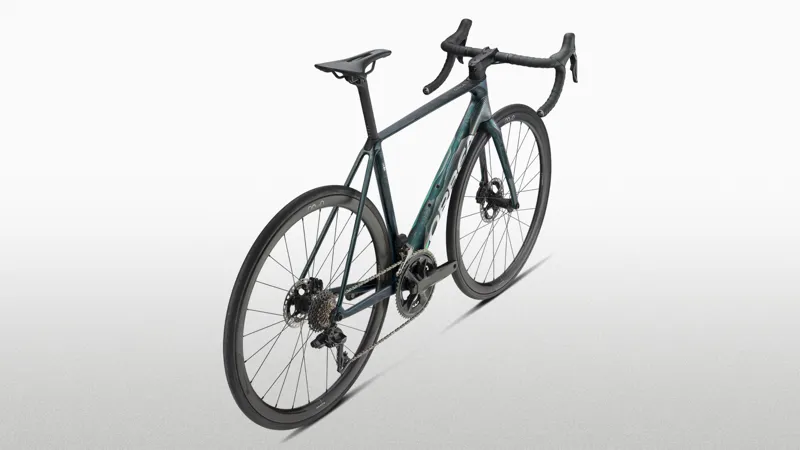

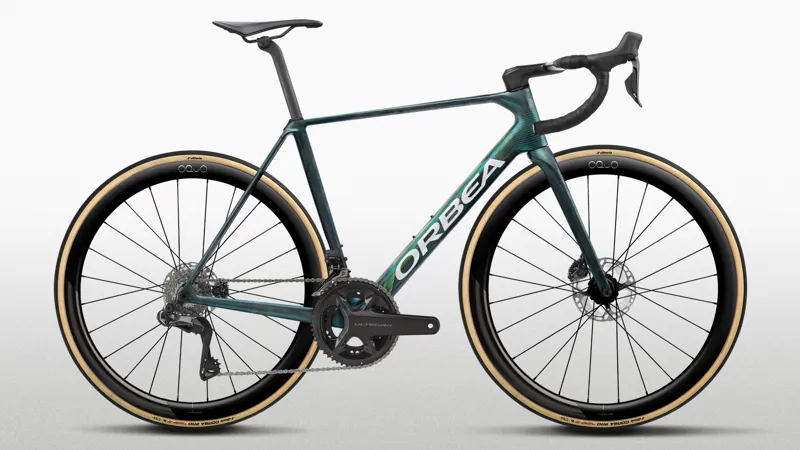

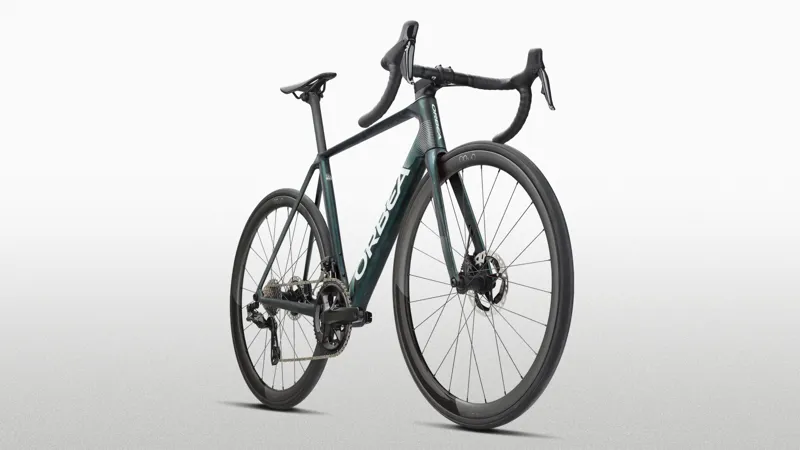

The 2027 Orbea Orca M20i LTD PWR in Escape Green / Carbon View Matt is a premium lightweight road bike that combines Orbea’s OMX carbon platform with Shimano Ultegra Di2 and factory-fitted 4iiii power measurement.

Its OMX carbon frame, full-carbon ICR fork and OC integrated cockpit provide the light, tidy foundation shared by the top Orca builds. Shimano Ultegra Di2 handles 12-speed shifting, the 36/52T chainset includes a left-side 4iiii power meter, and OQUO RP45LTD carbon wheels roll on Vittoria Corsa Pro 29mm tubeless-ready tyres.

Our opinion: For many riders, this is the sensible performance choice in the LTD range. Ultegra Di2 is proven, the power meter is already fitted, and the wheelset needs no immediate upgrade. It is a bike you can race, take to the mountains or simply enjoy on your best weekend rides straight out of the box.

Key Features & Performance Highlights

  • OMX Carbon Frameset: Flagship Orca carbon construction with a full-carbon ICR fork and fully internal cable routing.

  • Shimano Ultegra Di2: 12-speed electronic shifting with a 36/52T chainset, 11–34T cassette and left-side 4iiii power meter.

  • OQUO RP45LTD Wheels: Premium carbon wheelset paired with Vittoria Corsa Pro G2.0 TLR 700x29c tyres.

  • Integrated OC Cockpit: SH-RA10 carbon handlebar and stem provides a clean, aerodynamic front end.

  • Premium Touchpoints: Fizik Vento Antares R1 carbon-rail saddle and OC XP10-S carbon seatpost.
Technical Information

Fork

Orbea Orca OMX ICR 2024, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1.

Frame

Orbea Orca carbon OMX 2024, monocoque construction, HS 1,5", BB 386mm, powermeter compatible, Rear Thru Axle 12x142mm, thread M12x2 P1, internal cable routing.

Headset

FSA 1-1/2" Integrated Aluminium Cup

Crankset

Shimano Ultegra R8100 36x52T with left side 4iiii Powermeter

Shifters

Shimano ST-8170

Cassette

Shimano Ultegra R8100 11-34t 12-Speed

Rear derailleur

Shimano Ultegra Di2 R8150

Front derailleur

Shimano Ultegra Di2 R8150

Chain

Shimano M8100

Handlebar

Integrated Bar and Stem OC SH-RA10, Road Aero Carbon, Reach 80, Drop 125

Brakes

Shimano R8170 Hydraulic Disc

Rotors

160mm Front /140mm Rear

Brakes Configuration

N/A

Wheels

Oquo Road Performance RP45LTD

Tyres

Vittoria Corsa Pro G2.0 TLR 700x29c

Front Wheel Axle

Orbea Thru Axle 12x100mm M12x2 P1 Lite

Rear Wheel Axle

Orbea Thru Axle 12x142mm M12x2 P1 Lite

Saddle

Fizik Vento Antares R1 Carbon Rail 140mm

Seatpost

OC Performance XP10-S Carbon, 27.2mm, Setback 20

Handlebar Tape

OC Components
