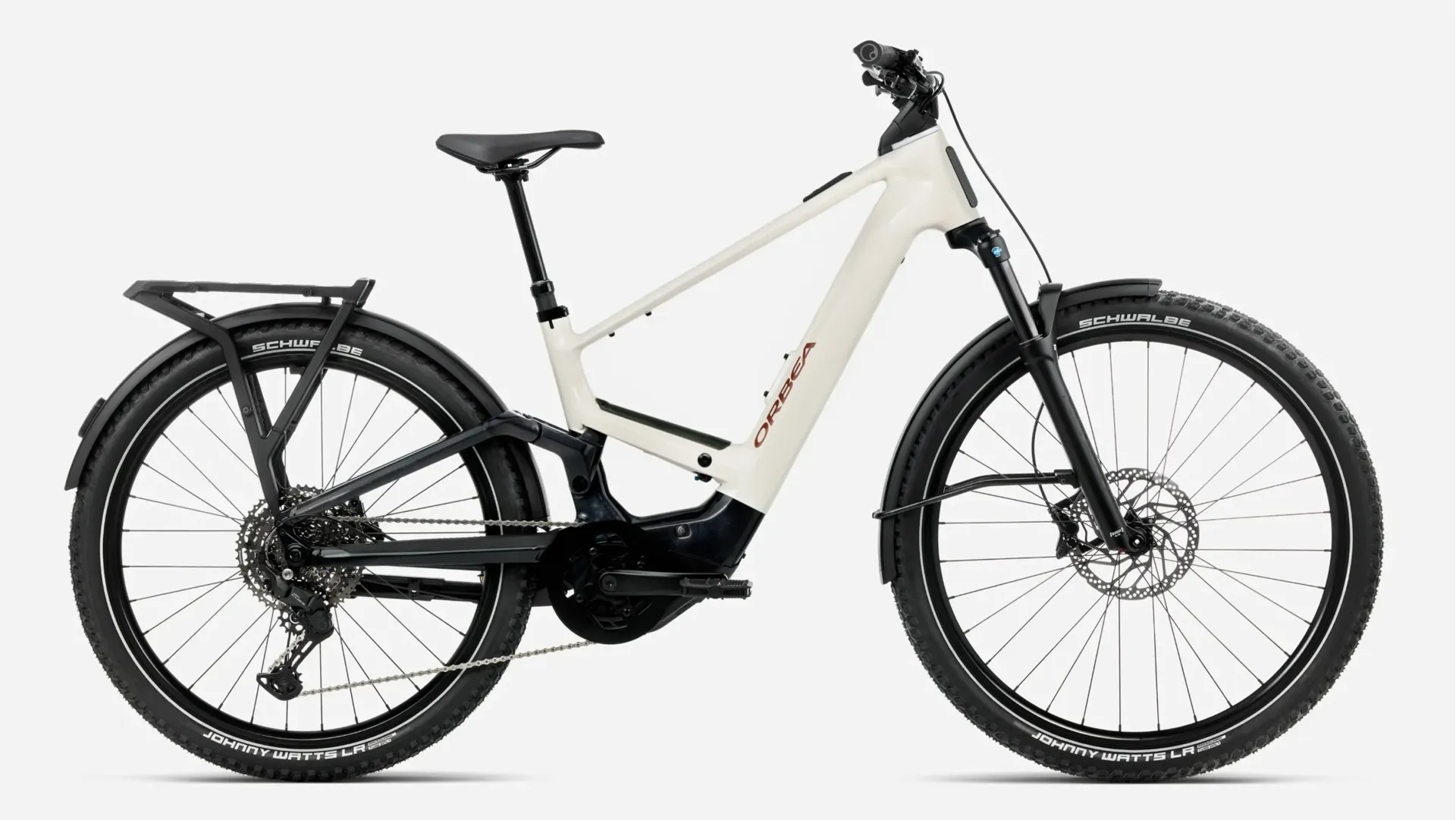

2027 Orbea Muga 30 Hybrid Electric Bike - Ivory White/Black

Season:2027

Brand:ORBEA

Code:U370TTCCHT

The 2027 Orbea Muga 30 is a versatile full-suspension electric SUV bike engineered for riders who want maximum comfort, carrying capacity and confident control across town, country lanes and unsurfaced routes.

The Muga combines a powerful drive system and large battery with full suspension, high-volume tyres and a complete utility package. The suspension is there as much for comfort and control as outright trail speed, isolating the rider and luggage from potholes and rough tracks while the integrated equipment keeps the bike practical for everyday journeys. On the Muga 30, the component package follows the same brief. Power comes from Bosch Performance Line CX BDU3843 with a Bosch Powertube 600Wh Horizontal BBP3860 battery and Bosch System Controller BRC3100 control. The drivetrain is built around Shimano CUES U6000 GS Shadow with Shimano CUES SL-U6000, Shimano CS-LG400 11-50t 11-Speed, and Prowheel EB03 alloy. Suspension is handled by SR Suntour Mobie34 120mm Air Q15x110 up front and FOX Float Performance Trunnion 2-Pos custom tune 165x42.5mm at the rear. It rolls on Alloy, 26c, 32H wheels with Schwalbe Johnny Watts LR, 60-622, Reflective Tape tyres, with braking from Shimano MT420 Hydraulic Disc.

Our opinion: The Muga is the e-bike equivalent of an SUV: substantial, extremely capable and at its best when one bike needs to handle several jobs. It is not the lightest option to lift onto a rack, but for comfort, range and load-carrying confidence it is difficult to beat. Crucially, the motor, battery and rest of the build feel matched to the job of the bike, so the assistance does not expose obvious weaknesses elsewhere in the specification.

Key Features & Performance Highlights

  • Full-Suspension Utility Chassis: Orbea Muga 2026, Hydroformed Alloy 6061, OLD 148, Belt drive compatible, Orbea cockpit and equipment ecosystem, with Custom Kickstand, Carrier compatible.

  • Integrated Drive System: Bosch Performance Line CX BDU3843 paired with Bosch Powertube 600Wh Horizontal BBP3860 and Bosch Mini Remote BRC3300.

  • Suspension Package: SR Suntour Mobie34 120mm Air Q15x110 up front and FOX Float Performance Trunnion 2-Pos custom tune 165x42.5mm at the rear.

  • Purpose-Matched Drivetrain: Shimano CUES U6000 GS Shadow with Shimano CUES SL-U6000, Shimano CS-LG400 11-50t 11-Speed, and Prowheel EB03 alloy.

  • Trail Control Package: Alloy, 26c, 32H wheels with Schwalbe Johnny Watts LR, 60-622, Reflective Tape tyres and Shimano MT420 Hydraulic Disc brakes.
Technical Information
  • Fork
    SR Suntour Mobie34 120mm Air Q15x110
  • Frame
    Hydroformed Alloy 6061, OLD 148, Belt drive compatible, Orbea cockpit and equipment ecosystem, w/ Custom Kickstand, Carrier compatible
  • Shock
    Fox Float Performance Trunnion 2-Pos custom tune 165x42.5mm
  • Headset
    FSA 1-1/2" Integrated Aluminium Cup
  • Motor
    Performance Line CX
  • Battery
    Bosch Powertube 600 BBP3860
  • Display
    Bosch System Controller
  • Charger
    4A Charger (220 – 240 V)
  • Remote
    Bosch Mini Remote BRC3300
  • Chainring
    Alloy BDU37/38 42t
  • Crank
    Prowheel EB03 alloy
  • Shifters
    Shimano Cues SL-U6000
  • Cassette
    Shimano CS-LG400 11-50t 11-Speed
  • Rear derailleur
    Shimano Cues U6000 GS Shadow
  • Chain
    KMC eGlide
  • Handlebar
    Orbea Urban, Integrated Light, Rise 30, Width 760
  • Computer mount
    Smartphone mount SP Connect SPC+
  • Brakes
    Shimano MT420 Hydraulic Disc
  • Wheels
    Alloy, 26c, 32H
  • Tyres
    Schwalbe Johnny Watts LR, 60-622 and 60-584, Reflective Tape
  • Saddle
    Selle Royal Vivo Ergo
  • Seatpost
    OC Mountain Control MC22
  • Seatpost lever
    OC Dropper Remote for Sram Matchmaker
  • Rear light
    Supernova TL3 Z
  • Pedals
    VP-892 with reflectors
  • Rear carrier
    Orbea RR-02 Alloy, w/MIK HD and MIK Side and Ortlieb QL3.1 system, Max. 30Kg
  • Mudguard
    Curana Apollo Orbit 70mm
  • Front position light
    Orbea Integrated
  • Front light
    Starstream Pro Low Beam
  • Quick stand
    Orbea Integrated
