The 2027 Orbea Muga 10 combines a hydroformed aluminium chassis with Bosch Performance Line CX BDU3843, Bosch Powertube 750Wh Horizontal BBP3770 and Enviolo Automatiq for comfortable all-terrain utility.
The 2027 Orbea Muga 10 combines a hydroformed aluminium chassis with Bosch Performance Line CX BDU3843, Bosch Powertube 750Wh Horizontal BBP3770 and Enviolo Automatiq for comfortable all-terrain utility.
ORBEA

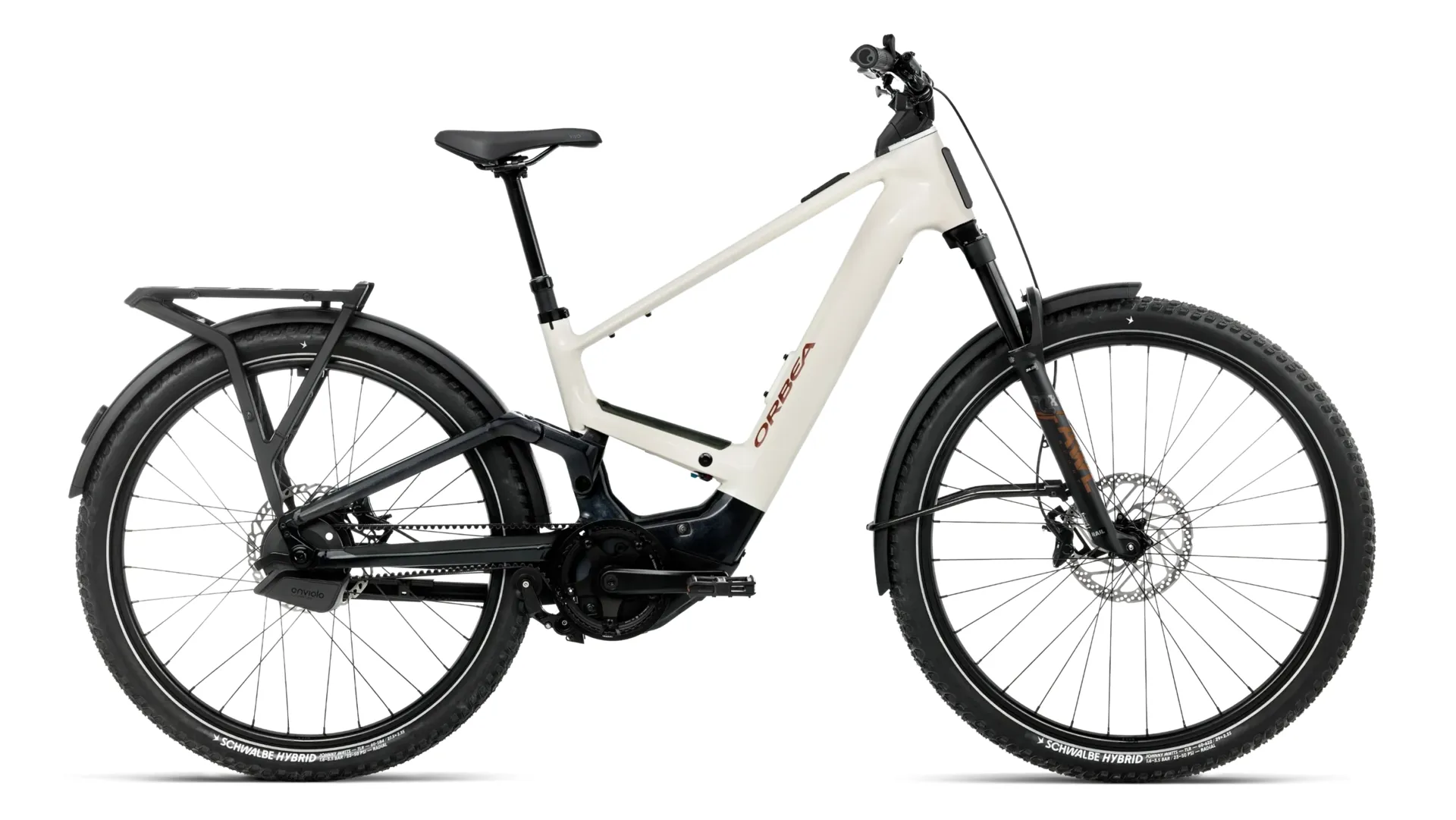

2027 Orbea Muga 10 Hybrid Electric Bike - Ivory White/Black

£6,299.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

28 day returns

Refunds and Returns Policy

We guarantee to replace or refund faulty products covered by manufacturers warranty subject to inspection of goods and manufacturers approval.

We will replace or refund goods which don't fit or are unsuitable provided the goods are returned unused and in the original packaging within 28 days of delivery.

The quickest option is to drop the stock back to us in store along with a copy receipt but alternatively we have made the online returns process as simple as possible for you.

1)            Give us a call on 01952 763274 or email us to say you're sending something back

2)            Pop a note in, together with a copy receipt, with the item to say whether you'd like a refund or an exchange for a different product

3)            Post it back to us at Plush Hill Cycles, Unit 9A, Birchfield Way, Lawley, Telford, TF3 5BZ and make sure you get a proof of postage

4)            The item is your responsibility until it reaches us. For your own protection, we recommend that you send the parcel using a delivery service that insures you for the value of the goods.

5)            The cost of returning the item to us is your responsibility.

6)            The parcel can take up to 7 working days to be processed once received.

Promotional items: When returning items that were purchased online as part of a ‘Buy One, Get One Free’ offer, 'Buy One, Get One Half Price' offer, '3 for 2' offer, or a 'Buy , Get a Free' offer, all of the items involved in the offer must be returned.

When returning goods, if no fault is found we do not refund delivery charges and may charge for collecting the goods if they are not brought into our store.

All Custom Builds and 'Made to Order' items require a 20% deposit on order, with the balance payable at pick-up/delivery and are, unless faulty, non-refundable.

Deposits on Special Order Items are non-refundable.

Items ordered specially into store will be held in-store for 14 days from the time that customers are notified that they are available for pick-up (unless otherwise agreed). If goods are not collected in that time they will added to shop stock and made available for general sale, deposits are non-refundable.

2027 Orbea Muga 10 Hybrid Electric Bike - Ivory White/Black

Season:2027

Brand:ORBEA

Code:U372TTCCHT

The 2027 Orbea Muga 10 is a performance-focused full-suspension electric SUV bike engineered for riders who want maximum comfort, carrying capacity and confident control across town, country lanes and unsurfaced routes.

The Muga combines a powerful drive system and large battery with full suspension, high-volume tyres and a complete utility package. The suspension is there as much for comfort and control as outright trail speed, isolating the rider and luggage from potholes and rough tracks while the integrated equipment keeps the bike practical for everyday journeys. On the Muga 10, the component package follows the same brief. Power comes from Bosch Performance Line CX BDU3843 with a Bosch Powertube 750Wh Horizontal BBP3770 battery and Bosch System Controller BRC3100 control. The drivetrain is built around Enviolo Automatiq, BT with Gates CDX 24t for Enviolo and Prowheel EB03 alloy. Suspension is handled by FOX 34 Float AWL Sport 120 Rail 2.0, Kabolt 15x110, Fender and ABS Mts up front and FOX Float Performance Trunnion 2-Pos custom tune 165x42.5mm at the rear. It rolls on Alloy, 25c, 32H wheels with Schwalbe Johnny Watts Hybrid Radial TLR, 60-622, Radial, Addix Green, Reflective Tape tyres, with braking from Shimano MT520 Hydraulic Disc.

Our opinion: The Muga is the e-bike equivalent of an SUV: substantial, extremely capable and at its best when one bike needs to handle several jobs. It is not the lightest option to lift onto a rack, but for comfort, range and load-carrying confidence it is difficult to beat. On this specification, the electronic control is a meaningful upgrade for riders who value repeatable shifts and a cleaner cockpit, rather than an isolated headline feature.

Key Features & Performance Highlights

  • Full-Suspension Utility Chassis: Orbea Muga 2026, Hydroformed Alloy 6061, OLD 148, Belt drive compatible, Orbea cockpit and equipment ecosystem, with Custom Kickstand, Carrier compatible.

  • Integrated Drive System: Bosch Performance Line CX BDU3843 paired with Bosch Powertube 750Wh Horizontal BBP3770 and Bosch Mini Remote BRC3300.

  • Suspension Package: FOX 34 Float AWL Sport 120 Rail 2.0, Kabolt 15x110, Fender and ABS Mts up front and FOX Float Performance Trunnion 2-Pos custom tune 165x42.5mm at the rear.

  • Purpose-Matched Drivetrain: Enviolo Automatiq, BT with Gates CDX 24t for Enviolo and Prowheel EB03 alloy.

  • Trail Control Package: Alloy, 25c, 32H wheels with Schwalbe Johnny Watts Hybrid Radial TLR, 60-622, Radial, Addix Green, Reflective Tape tyres and Shimano MT520 Hydraulic Disc brakes.
Technical Information
  • Fork
    Fox 34 Float AWL Sport 120 Rail 2.0, Kabolt 15x110, Fender and ABS Mts
  • Frame
    Orbea Muga 2026, Hydroformed Alloy 6061, OLD 148, Belt drive compatible, Orbea cockpit and equipment ecosystem, w/ Custom Kickstand, Carrier compatible
  • Shock
    Fox Float Performance Trunnion 2-Pos custom tune 165x42.5mm
  • Headset
    FSA 1-1/2" Integrated Aluminium Cup
  • Motor
    Performance Line CX
  • Battery
    Bosch PowerTube 750 BBP3770
  • Display
    Purion 400
  • Charger
    4A Charger (220 – 240 V)
  • Remote
    Bosch Mini Remote BRC3300
  • Chainring
    Gates CDX 48t w/chainguard
  • Crank
    Prowheel EB03 alloy
  • Cassette
    Gates CDX 24t for Enviolo
  • Rear derailleur
    Enviolo Automatiq, BT
  • Chain
    Gates CDX Belt
  • Handlebar
    Orbea Urban, Integrated Light, Rise 30, Width 760
  • Computer mount
    Smartphone mount SP Connect SPC+
  • Brakes
    Shimano MT520 Hydraulic Disc
  • Wheels
    Alloy, 25c, 32H
  • Tyres
    Schwalbe Johnny Watts Hybrid Radial TLR, 60-622, Radial, Addix Green, Reflective Tape; Schwalbe Johnny Watts Hybrid Radial TLR, 60-584, Radial, Addix Green, Reflective Tape
  • Saddle
    Selle Royal Vivo Ergo
  • Seatpost
    OC Mountain Control MC22
  • Seatpost lever
    OC Dropper Remote for Sram Matchmaker
  • Rear light
    Supernova TL3 Z
  • Pedals
    VP-892 Black with reflectors
  • Rear carrier
    Orbea RR-02 Alloy, w/MIK HD and MIK Side and Ortlieb QL3.1 system. Max. 30Kg
  • Mudguard
    Curana Apollo Orbit 70mm
  • Front position light
    Orbea Integrated
  • Front light
    Supernova Starstream Pro, High Beam
  • Quick stand
    Orbea Integrated
