Conquer any gradient on the 2027 Orbea Denna H40 E-Gravel Bike in Blue Stone. Built with a hydroformed alloy frame, full-carbon fork, Shimano drive system with a 420Wh battery, and 50c tire clearance, it delivers smooth power and total off-road confidence.
Conquer any gradient on the 2027 Orbea Denna H40 E-Gravel Bike in Blue Stone. Built with a hydroformed alloy frame, full-carbon fork, Shimano drive system with a 420Wh battery, and 50c tire clearance, it delivers smooth power and total off-road confidence.
ORBEA

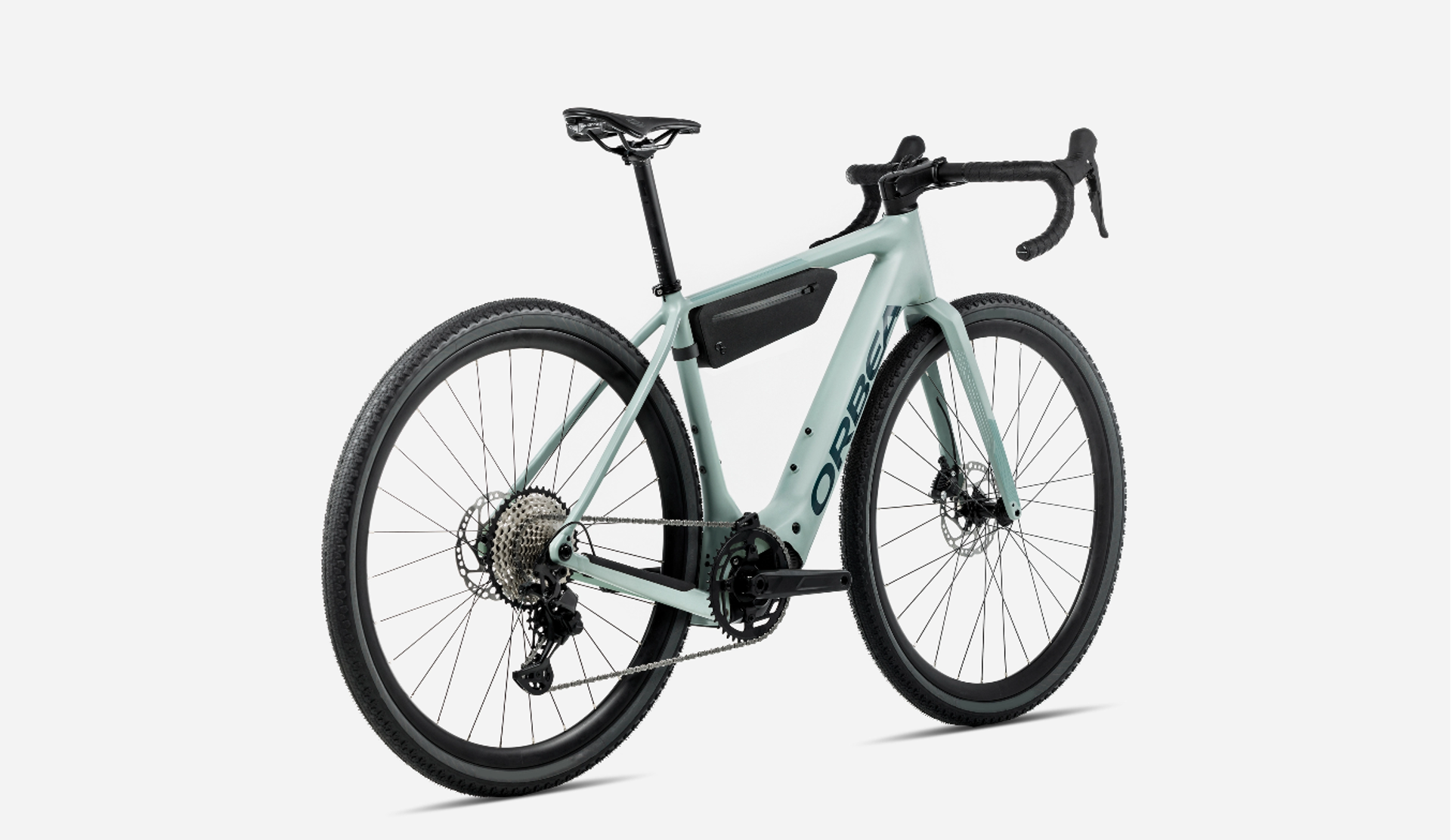

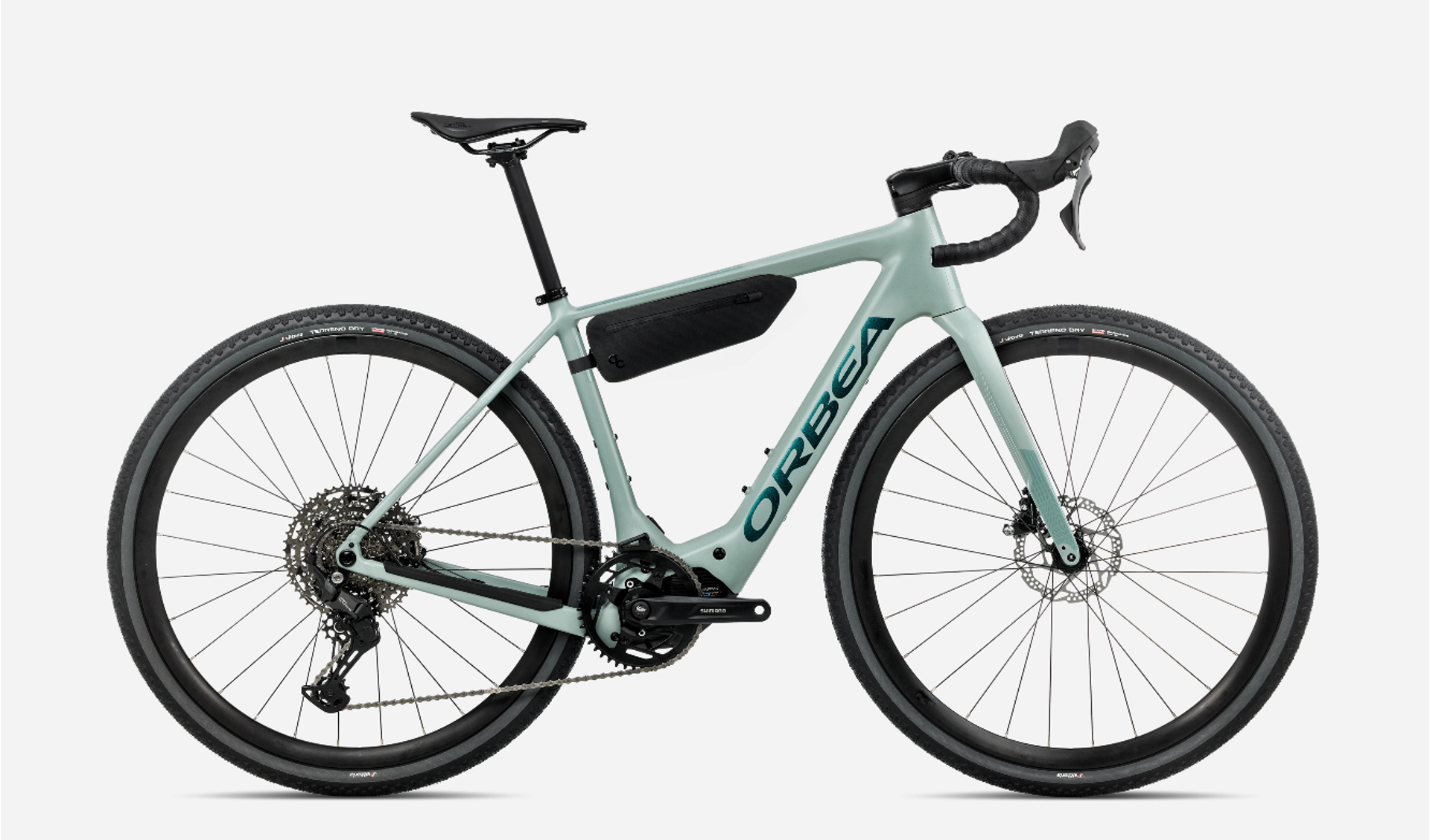

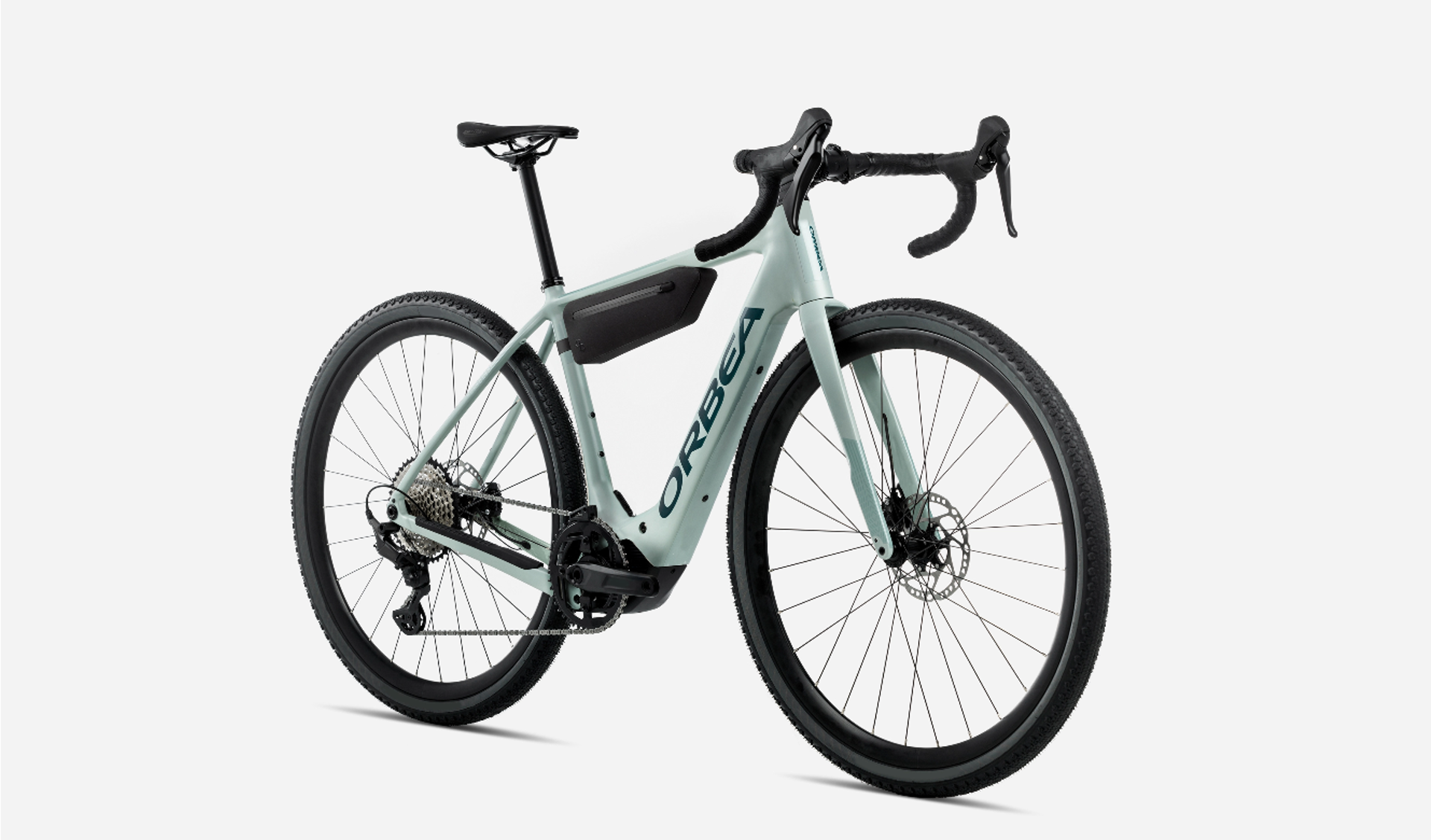

2027 Orbea Denna H40 Electric Gravel Bike - Blue Stone

£3,499.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

28 day returns

Refunds and Returns Policy

We guarantee to replace or refund faulty products covered by manufacturers warranty subject to inspection of goods and manufacturers approval.

We will replace or refund goods which don't fit or are unsuitable provided the goods are returned unused and in the original packaging within 28 days of delivery.

The quickest option is to drop the stock back to us in store along with a copy receipt but alternatively we have made the online returns process as simple as possible for you.

1)            Give us a call on 01952 763274 or email us to say you're sending something back

2)            Pop a note in, together with a copy receipt, with the item to say whether you'd like a refund or an exchange for a different product

3)            Post it back to us at Plush Hill Cycles, Unit 9A, Birchfield Way, Lawley, Telford, TF3 5BZ and make sure you get a proof of postage

4)            The item is your responsibility until it reaches us. For your own protection, we recommend that you send the parcel using a delivery service that insures you for the value of the goods.

5)            The cost of returning the item to us is your responsibility.

6)            The parcel can take up to 7 working days to be processed once received.

Promotional items: When returning items that were purchased online as part of a ‘Buy One, Get One Free’ offer, 'Buy One, Get One Half Price' offer, '3 for 2' offer, or a 'Buy , Get a Free' offer, all of the items involved in the offer must be returned.

When returning goods, if no fault is found we do not refund delivery charges and may charge for collecting the goods if they are not brought into our store.

All Custom Builds and 'Made to Order' items require a 20% deposit on order, with the balance payable at pick-up/delivery and are, unless faulty, non-refundable.

Deposits on Special Order Items are non-refundable.

Items ordered specially into store will be held in-store for 14 days from the time that customers are notified that they are available for pick-up (unless otherwise agreed). If goods are not collected in that time they will added to shop stock and made available for general sale, deposits are non-refundable.

2027 Orbea Denna H40 Electric Gravel Bike - Blue Stone

Season:2027

Brand:ORBEA

Code:U390TTCCGS

The 2027 Orbea Denna H40 in Blue Stone is a high-performance electric gravel bike engineered to eliminate limits and extend your off-road range. Combining an optimized triple-butted hydroformed alloy frame with a gravel-tuned Shimano motor system, the Denna H40 delivers seamless power on steep gradient ascents and supreme stability on loose, technical surfaces.

Featuring Orbea’s gravel-specific geometry, a low centre of gravity, and high tire clearance, this e-gravel bike offers the ideal balance of vertical frame compliance, high-speed control, and all-day endurance comfort.

Key Features & Highlights

  • Gravel-Tuned Drive System: Features Shimano's lightweight drive motor with custom RS Gen2 tuning to deliver natural, lag-free power up to 85Nm of torque.
  • High-Capacity 420Wh Internal Battery: Slim, integrated 420Wh battery provides optimized power-to-weight efficiency for extended climbing and long-distance exploration.
  • Full-Carbon OMR Monocoque Fork: Vibration-damping full-carbon fork absorbs rough trail chatter, improving steering precision and reducing rider fatigue.
  • Versatile 50c Tire Clearance: Generous frame and fork clearance allows wide tire customization (up to 700x50c) for unpaved backroads and wild trails.
  • Comfort-Focused Frame Flex: Engineered vertical flex points in the hydroformed aluminum frame quiet high-frequency vibrations without sacrificing power transfer.
  • Adventure-Ready Mounts: Integrated mounting points for fenders, dual bottle cages, and rear pannier racks make it ideal for multi-day bikepacking trips.
Technical Information

Fork

Orbea Denna OMR ICR, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12xP1

Frame

Orbea Denna, Thru Axle 12mm x 142mm rear, thread M12xP1, internal cable routing.

Headset

FSA 1-1/2" Integrated Aluminium Cup

Motor

Shimano EP600

Battery

Orbea Internal 420Wh

Range Extender

N/A

Charger

Orbea 2.Generation eBike Smart charger 42V/2-4A

Remote

EN600-L

Chainring

Alloy EP8 42t

Crank

Shimano Steps EM600

Shifters

Shimano U6030

Cassette

Shimano CS-LG400 11-50t 11-Speed

Rear derailleur

Shimano Cues U6000 GS Shadow

Chain

Shimano LG500

Chainguide

Orbea eBike chainguide

Handlebar

OC Gravel GR31, Reach 70, Drop 110

Stem

OC Road Performance RP23, -5º

Brakes

Shimano RS405 Hydraulic Disc

Brakes Configuration

N/A

Wheels

Alloy, Tubeless, 700c, 21c

Tyres

Pirelli Cinturato™ GRAVEL H Classic 700X45c TLR

Front Wheel Axle

Orbea Thru Axle 12x100mm M12xP1 Hollow

Rear Wheel Axle

Orbea Thru Axle 12x142mm M12xP1 Solid inner threaded

Saddle

Selle San Marco Shortfit 2.0 Start Up Off Road

Seatpost

SP 0.2 Carbon, 27.2mm, Setback 0

Mudguard

N/A

Handlebar Tape

OC Components

Storage

OC Frame Bag for Denna
